DIY Changeover Streamline - SMED

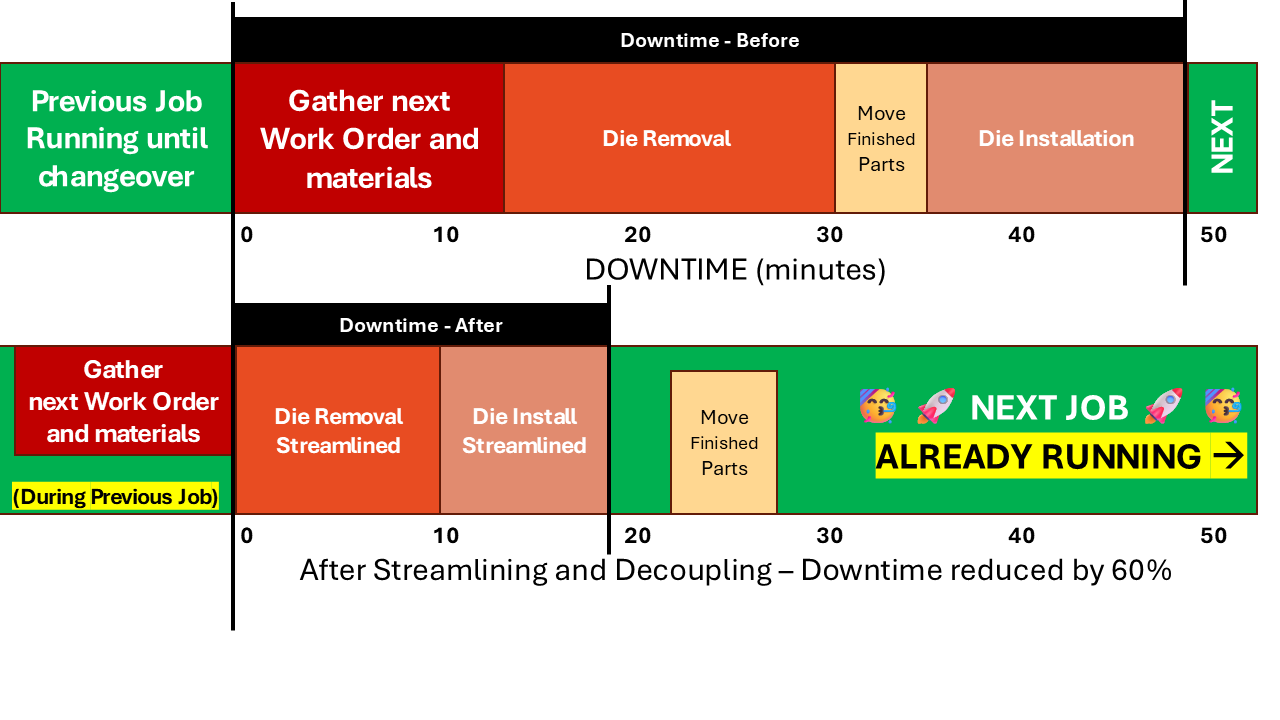

Changeovers seem like a necessary evil and just a fraction of your day. Shouldn’t we speed up our production process rather than our setup? Why would we bother?

A machine that earns $150 an hour pays you nothing while it waits for an operator walking to the store room for a tool. Six minutes a trip, five trips a shift, and you lose $75 every shift. Over 240 shifts that is $18,000 a year just in lost production time.

Good News!

You can get most of that back for a fraction of the cost.

Tips:

🚀 Put a second set of tools on a changeover shadow board with wheels. It rolls right up to the operator's right hand. Zero steps to the next wrench.

🚀 Deliver parts and tools to the point of use. The operator runs the machine; someone else runs the errands.

🚀 Make stop gauges and shims for setups you repeat. A bent, broken tape measure is a poor gauge for the fortieth job.

🚀 Add a quick Andon so maintenance sees the problem in seconds. Your maintenance guys are hard to reach. Don't make your machinist go find them.

🚀 Allow the operator to clear the routine "Cache error" or whatever is the typical standstill. If it happens every week, it is part of the job; it should not need a maintenance ticket.

Plan tomorrow's changeover today, and the machine keeps earning while everyone else looks for the tape measure.

Get started!

Turn the needed setup tools and materials into a nice little care package.

- Factory Physicians -

Here to help with this and MORE!

Move a few tasks around so you can better utilize your machine’s uptime.

The Set-and-Calibrate Step Is Hiding Your Real Defect Rate

Every electromechanical relay that comes off your line gets a set-and-calibrate step. Ten to twenty minutes per unit. Spring tension gets adjusted for proper return. Contact pressure and gap get set to design parameters before the unit moves on to functional testing. That adjustment work is a normal, documented part of relay assembly. Everyone treats it as fixed overhead, the price of building something with moving parts. It isn't. In most shops running this step, the technician is often correcting the same handful of defects, unit after unit, and nobody upstream knows it's happening. GEYA

What set-and-calibrate actually is

On paper, set-and-calibrate means fine-tuning a good unit to meet its final spec. In practice, on a lot of lines, the technician isn't fine-tuning. They're correcting. A stamped part upstream is running loose, so the contact gap is wide. A supplier lot shifted, so spring tension reads low. A winding step isn't holding tolerance, so coil resistance is variable. None of that gets traced back. The tech just sees a bad reading and knows how to make it good, because they've done it a thousand times.

The calibration bench is absorbing defects created earlier in the build, and nothing records that it happened.

This has a name, and it's older than your process

Quality engineer Armand Feigenbaum named this in the 1970s. He called it the hidden factory: the share of a plant's capacity that goes into unofficial rework, workarounds, and correction that never shows up on a scrap report or a defect log. He pictured it as an iceberg, with the costs everyone tracks (rejects, warranty, scrap, formal rework) sitting above the waterline, and the real cost sitting below it, uncounted. His number, which sounded absurd when he said it and has held up since, was that the hidden factory eats somewhere between 15 and 40 percent of a plant's total capacity. iSixSigmaAIGPE

Set-and-calibrate on a relay line is a textbook hidden factory. It's not on the scrap report because nothing got scrapped. It's not on the rework log because nothing was ever flagged as defective. It's absorbed, quietly, by a skilled tech who has learned to compensate without ever being told what they're compensating for.

The sharper problem: compensation isn't correction

Here's the part most quality systems miss entirely. W. Edwards Deming spent years demonstrating something called tampering, using a simple setup: drop a marble through a funnel at a target, and adjust the funnel's position based on where the last marble landed. He built the experiment specifically to show what happens when you adjust a process in response to variation without first understanding what's causing it. The finding, confirmed over and over: adjusting based on individual data points doesn't tighten the results, it multiplies the variation, sometimes by two or three times over. W. Edwards Deming Institute

A calibration tech nudging spring tension because the reading came in low is doing exactly this. They're not correcting a known cause. They're reacting to a symptom and moving the setting until the number lands in range, one unit at a time, with no record of which direction they moved or why. It works, in the narrow sense that the unit passes. But the upstream cause that put the tension out of range in the first place is still there, still drifting, and will show up again on the next unit and the one after that.

What it actually costs

An automotive parts supplier once calculated their scrap and rework at 5 percent of revenue, using the numbers everyone tracks: material and direct labor. When they added the capacity tied up by rework, the engineering hours spent chasing the same problems, and the expediting needed to replace what got scrapped, the real number came out above 12 percent of revenue. They'd been fighting the same quality problem for years while measuring less than half its actual cost. Set-and-calibrate time on a relay line works the same way. If a clean unit needs three to five minutes and your line average is twelve, those extra seven to nine minutes are rework, they just never got the name. Rework

Three costs hiding inside the same ten minutes

Time. Every minute past the clean-unit baseline is labor spent correcting a defect that was never diagnosed.

Scrap risk. Not every correction lands. A unit that's out of range far enough eventually gets scrapped instead of saved, and that one does show up on your report, disconnected from the ninety-nine before it that got quietly fixed.

Dependency on one person. The fastest techs aren't fast because calibration is easy. They've built an unwritten pattern library: this reading, this fix, every time. New hires take longer and miss more, and it gets written off as a training gap. It isn't. It's the same Best Person Bottleneck that shows up anywhere critical knowledge lives in someone's hands instead of on a spec sheet. Your line's real ceiling is however sharp that one person's memory is on a given day. I’m beginning to wonder if we should just ABOLISH all specific production training so that every employee can do every job, regardless of how good or bad their memory is. Probably not going to happen. But what if we made it easier for everyone to do the work. Like LEGO instructions. Like the Betty Crocker Cookbook.

How to open the black box

Log what's actually getting adjusted, not just how long it takes. For one to two weeks, have techs note which parameter needed the most correction on every unit that ran long. Not root cause yet. Just which reading was off.

Sort by frequency. In most quality data, a small share of defect types accounts for the large majority of the cost, typically in the range of 20 percent of types driving 80 percent of the total. Relay calibration will follow the same pattern. Two or three recurring issues will account for most of your extra minutes. Rework

Trace each one to its actual source. A wide contact gap traces to a stamping or forming step. A resistance drift traces to a winding process or a supplier lot. Go stand at that step. Don't read the traveler, watch the part get made.

Fix the source, not the symptom. Once the upstream cause is controlled, that defect stops showing up at the bench, and your standard calibration time drops for every unit that follows it, permanently, not just for the batch you happened to catch.

The takeaway

A hidden factory doesn't announce itself. It looks like a normal step on a normal traveler, running at a time everyone's accepted as standard. The floor already knows which units take longer and which reading they're always fighting. That knowledge just never left the calibration bench. Go stand there for a week and find out what your best tech has been quietly fixing for you, for free, this whole time.

Sources

• Hidden Factory: The Unseen Costs Draining Your Factory — iSixSigma, on Armand Feigenbaum's hidden factory concept and the cost-of-poor-quality iceberg model

• Hidden Factory: 7 Powerful Truths That Expose Costly Rework — AIGPE, on Feigenbaum's quality-cost model and the 15 to 40 percent capacity estimate

• Scrap and Rework Reduction: Proven Methods to Cut Manufacturing's Hidden Costs — on the automotive supplier case study and the 80/20 defect-cost distribution

• The Funnel Experiment — The W. Edwards Deming Institute, on tampering and adjusting a process without understanding the cause of variation

• Over-controlling a Process: The Funnel Experiment — SPC for Excel, on how single-point adjustments multiply process variation

• Relay Manufacturing Process: How Precision Meets Engineering — on standard spring tension and contact gap adjustment steps in relay assembly

What a Bottleneck Breakdown Assessment Actually Finds on Your Assembly Line

A bottleneck breakdown assessment for assembly plants is a short, focused diagnostic. It walks your line, times the stations, and identifies which step caps your output today.

It also shows which stations are quietly starved or blocked because of that constraint. For Northeast Ohio plant managers without an in-house industrial engineer, it is the fastest way to see the floor as an engineer would, without hiring one.

Key Takeaways

• One true constraint, not five: Every line has a single step that caps total output. Everything else is either feeding it or waiting on it.

• Near-bottlenecks hide in plain sight: Fix the current constraint without checking the runner-up, and a new one appears within days. It often catches the team off guard.

• Starved vs. blocked tells you where to look: A station standing idle for lack of parts points upstream. One piling up finished work points downstream. Confusing the two sends fixes to the wrong place.

• The $299 Changeover Checkup & Bottleneck Breakdown is a same-week, low-cost way to get this picture without committing to a full plant study.

• Most shops find capacity, not new spending: The fix is usually a work instruction, a changeover sequence, or a staffing tweak. It is not usually a new machine.

What Is a Bottleneck Breakdown Assessment for Assembly Plants?

A bottleneck breakdown assessment for assembly plants is a hands-on floor study. It finds the single step limiting your line's output, then maps how the surrounding stations behave because of it.

It is not a software report or a survey. It is someone standing at the line with a stopwatch, watching where work piles up and where it dries up.

Mitch Robinson offers the Changeover Checkup & Bottleneck Breakdown, a $299 introductory diagnostic for plant managers who know something is off but lack the staff to identify what—and what to change first.

Most small and mid-sized assembly shops in Solon, Chagrin Falls, Aurora, and the rest of Northeast Ohio do not have a dedicated industrial engineer on payroll. Quality directors and plant managers end up guessing at root cause between putting out fires.

That guesswork usually points to the wrong station. The one everyone complains aboutloud, visibly busy, and always backed upoften isnt the true constraint.

It may simply result from the constraint, making it look slow or underutilized.

Why Most Plant Managers Can't See Their Own Bottleneck

You cannot diagnose a line you are standing inside of. That is not a knock on plant managers. It is how attention works.

When you are covering absences, chasing a scrap spike, and fielding a customer call, you do not have forty minutes to stand at Station 4 and count parts.

Tribal knowledge fills the gap instead. Someone says, "it's always the press" because the press is old and loud.

Maybe. Or maybe the press is fine and is starved twice a shift because the upstream cutter runs a slow changeover nobody has timed in years.

Without measurement, both stories sound equally true. A true bottleneck is the step that caps the output of the entire system.

It is not necessarily the slowest machine on paper, the one that breaks down most, or the one operators complain about loudest. Separating that reality from the noise is the entire point of the assessment.

Before You Start: Know Your Target Time (Industry Takt Time)

These examples assume you already know your line’s target time for meeting demand. If not, here’s the short version.

Takt time is the pace your customer demand requires. Divide the time available in a shift by the number of units you need to produce. You can base that number on units ordered and critical ship dates.

For example, if an 8-hour shift requires a certain number of units, divide the available seconds by the required units to find takt: the maximum seconds allowed per unit to keep pace with demand. Many shops measure takt in minutes or hours, which is fine when a unit sells for $50, $200, $1,000, etc.

You do not need a formal study to get a working number. A supervisor who knows the shift length and the daily order quantity can calculate it in a few minutes.

Once you have that number, every station's cycle time gets compared against it. That comparison is what turns a stopwatch walk into a real diagnosis instead of a guess.

1. Finding the True Constraint

The true constraint is the station whose capacity, once used up, sets the ceiling for everything downstream of it.

It is found by watching cycle times across every station. The assessment also checks utilization against actual throughput, rather than against how busy a station looks.

High utilization is a trap. A station running at 95% busy can still be a near-bottleneck feeder, not the constraint, if its output exceeds what the next step can absorb.

The constraint is the one where work queues up in front of it and starves everything behind it. This pattern continues shift after shift, regardless of who is working it.

Picture a hypothetical six-station assembly cell running a 45-second takt time. If Station 3 cycles at 61 seconds and every other station runs 40-50 seconds, Station 3 caps the whole cell at roughly 59 units an hour (3,600 seconds ÷ 61 seconds per unit ≈ 59 units).

The other stations could support roughly 80 units an hour at their own cycle times. That gap—21 units an hour, every hour, every shift—is the capacity a bottleneck breakdown assessment is built to surface.

Once you know which 21-unit gap you are actually chasing, the fix conversation changes.

It is no longer "we need more people." It becomes "why does Station 3 take 61 seconds?" That is a much cheaper problem to solve.

2. Spotting Near-Bottlenecks Before They Bite

A near-bottleneck is close enough to the constraint's capacity that fixing the current bottleneck hands it the crown.

Ignore it, and the plant manager who just celebrated a throughput win gets blindsided a week later by a "new" problem. That problem was actually visible the whole time.

This matters more on a semi-automated or mixed-labor line than people expect. The constraint on first shift, with a full crew and a fresh tool, is not always the constraint on second shift.

Second shift may follow a changeover with a thinner headcount. A bottleneck breakdown assessment checks the runner-up stations specifically, so a fix does not simply relocate the problem.

Think of it as triage math. If Station 3 caps you at 59 units an hour and Station 5 caps you at 62, fixing Station 3 down to 55 seconds does not get you to 80 units.

It gets you to 62 because Station 5 is now the ceiling. Skipping this step is the most common reason a "fixed" bottleneck fails to move the needle plant managers expected.

Reading Results on Manual vs. Automated Lines

"Assembly plant" covers a lot of ground, from a fully manual cell to a line with automated stations mixed in. The signs above show up differently depending on which you're walking.

On a manual line, cycle time varies operator to operator. The same station can look like the constraint on one operator's shift and look fine on another's.

That's why the checklist below calls for repeating the walk across shifts and asking multiple operators, not just the one running the station when you happen to be standing there.

On an automated or semi-automated station, cycle time is usually fixed by the machine's programmed rate, so it won't vary shift to shift the way manual stations do.

There, starved and blocked patterns are more reliable signals than watching an operator, since the machine's own cycle time rarely changes. Look at how long the machine sits idle waiting for input, versus how often finished parts back up at its output, rather than trying to time the machine itself.

On a mixed line, the true constraint often sits right at the handoff between a manual station and an automated one. Time both sides of that handoff separately before you draw any conclusion about which side is causing the slowdown.

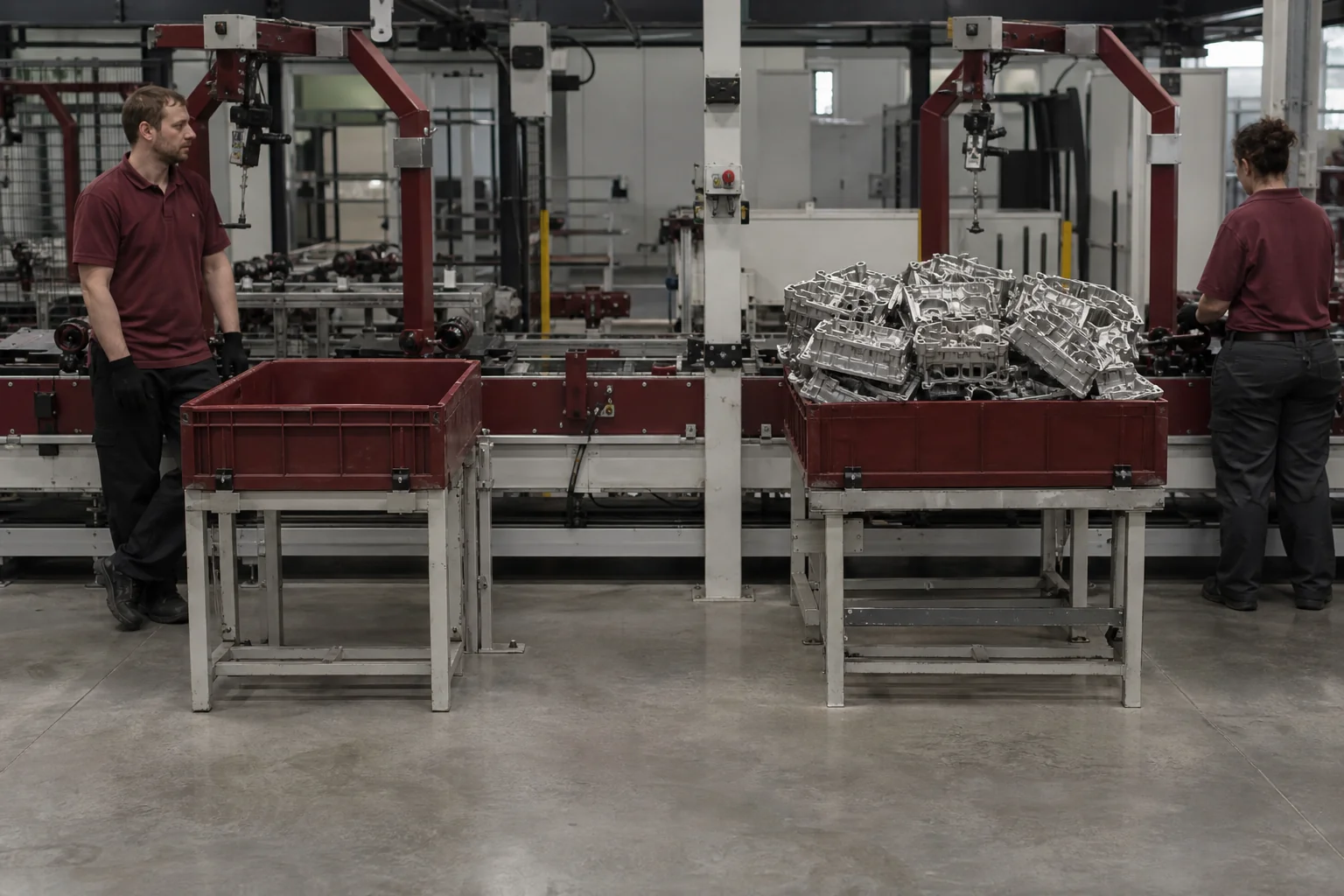

3. Telling Starved Stations From Blocked Stations

A starved station sits idle because it has no input to work on. The problem is upstream.

A blocked station sits full because it cannot release finished work downstream. The problem is further down the line.

Confusing the two sends the fix crew to the wrong end of the plant.

Starved and blocked are not guesses. They are two of the clearest fingerprints a bottleneck leaves behind.

If an operator is standing there with an empty bin, waiting on parts, that station is not your constraint. Whatever feeds it is the place to investigate.

If finished work stacks up because nobody downstream can take it yet, that station is not the constraint either. The next station in line is.

During a walk, this is what to watch for:

• Idle hands with an empty input bin: a starved station, pointing you upstream to a changeover, supply, or scheduling issue.

• Finished parts stacking up with nowhere to go: a blocked station, pointing you downstream to the true constraint.

• A station that's neither starved nor blocked but still running behind takt: a strong candidate for the true constraint itself.

• The pattern shifting between shifts: a sign the constraint moves with staffing, tooling, or material presentation, not with the machine itself.

Get this wrong and you might retrain an operator who was never the problem. You might also buy a machine that was already outpacing the line.

Get it right and the fix is often as simple as resequencing a changeover or moving one fixture six feet to the left.

How the Changeover Checkup & Bottleneck Breakdown Work

The $299 diagnostic is built to be fast. It does not ask a plant manager to shut down a line to find out what is wrong with it.

Mitch walks your assembly floor, times stations against your actual takt, and watches for the starved and blocked patterns described above during live production.

You get a plain-language write-up. It explains what is actually capping your output, what is next in line to become a problem, and where changeover time is quietly eating run hours.

There is no jargon and no forty-page report nobody reads.

It is intentionally scoped smaller than the full Factory X-Ray plant diagnostic, which digs into a whole facility over a longer engagement.

The Changeover Checkup is the first look. It tells you whether a deeper study or a targeted fix is the right next move, without a big commitment up front.

If your team is also fighting inconsistent quality calls at the same stations, it is worth reading how unclear engineering drawings and specs compound the same starved/blocked confusion.

Bad information travels through a line the same way bad parts do.

Why Northeast Ohio Assembly Plants Need This Now

Small and mid-sized assembly shops around Solon, Chagrin Falls, and Aurora are competing against fully automated plants and low-cost overseas labor.

They have neither the capital nor the headcount those competitors have. Finding capacity already sitting on your own floor is the more realistic play.

Most of these shops do not carry an industrial engineer on staff. That role gets outsourced only when something breaks badly enough to justify it.

A bottleneck breakdown assessment is built for that exact gap. It serves a plant manager who can read a schedule and a scrap report but has not had formal training in constraint theory or line balancing.

The upside can be real, though the exact number depends on your line. Treat 15-20% additional throughput as an estimate based on the kind of capacity gap shown in the worked Station 3 example above, not a guaranteed outcome for every plant.

The only way to know your own number is to run the walk, or have the assessment run it, and compare your actual station cycle times against your actual takt time.

A Simple Checklist to Try Before You Call Anyone

You can start this yourself before booking anything. Walk the line at shift change, when handoffs expose weak spots fastest, and watch for these signs:

1. Stand at each station for one full cycle and note where operators wait with nothing to do.

2. Look for WIP piling up in front of a specific station across multiple cycles, not just once.

3. Time three changeovers back to back and see if the sequence varies operator to operator.

4. Ask the operator, not the supervisor, what slows them down most—they usually know.

5. Repeat the walk on a different shift before drawing a conclusion.

If two or three of those signs point to the same station consistently, you have probably found your near-bottleneck at least.

Confirming the true constraint and separating starved from blocked usually takes a trained eye and a stopwatch running the whole shift.

That is exactly what the assessment adds.

Frequently Asked Questions

Is the $299 checkup worth it for a small shop?

Yes, for most shops running a single or multiple lines. The cost is low relative to even one week of lost throughput from an unidentified constraint.

It is built as a quick, low-risk first step. It is not a substitute for a deeper study on a multi-line facility.

How is this different from a full Factory X-Ray?

The Changeover Checkup focuses narrowly on one line's constraint, near-bottlenecks, or changeover time in a single visit.

The Factory X-Ray examines an entire plant's operations over a longer engagement. Think of the checkup as the fast diagnostic and the X-Ray as the full workup.

Do I need special software or sensors to find my bottleneck?

No. A trained observer with a stopwatch and a clear method can identify the true constraint and starved/blocked stations by watching live production.

No data platform or sensor install is required. Software helps at scale, but most small assembly plants do not need it to find their first round of capacity.

What happens after the assessment?

You get a written summary of the true constraint, the near-bottleneck to watch, and the starved/blocked pattern found on your floor.

You also get a recommendation on next steps. That may be a quick internal fix or a deeper engagement.

If you've read this far, you already suspect something on your line is capping output that shouldn't be. Get your first Quick Win for just $299 and find out exactly what it is before it costs you another quarter of missed throughput.

Want the framework first? Get the 5-Step Playbook, Money on the Floor, or get in touch to talk through what you're seeing on your floor. Curious who's behind the stopwatch? Meet Mitch Robinson and see how Northeast Ohio plants are finding capacity without new capital.

Tabletop Assembly - Time, Yield, and Rework

Tabletop assembly lines operating with manual labor frequently suffer from high variance, hidden costs, and late-stage defect detection. When standard manufacturing time is documented at 60 minutes per unit but yields hover at 50% with an average rework time of 20 minutes, the actual unit build time increases to 80 minutes.

This guide breaks down the core structural failures of unsegmented manual assembly, detailing actionable manufacturing engineering practices—from tactile shop-floor planograms to adjacent feeder stations—that eliminate waste, improve yield, and lower standard cost.

1. The Financial Reality of Late-Stage Rework

Manufacturing standards often obscure true shop-floor costs. A line built around a documented 60-minute single-operator tabletop assembly may seem cost-effective on paper, but standard labor metrics fail to capture the financial drag of rework.

Key Cost Metrics

• Documented Standard Labor: 60 minutes per unit.

• First-Pass Yield (FPY): 50 percent.

• Average Rework Time: 20 minutes per defective unit.

• True Unit Production Time: ~80 minutes per completed unit.

When a 60-minute process runs as a single uninterrupted block of work, a critical assembly error occurring at Minute 5 remains hidden until final inspection at Minute 60. The 20-minute rework penalty, combined with scrap rate and material overhead, means the line operates at a 33% inflation over standard labor costs.

2. Implementing Tactile Checkpoints (Takt-Time Segmentation)

Unsegmented assembly blocks delay feedback loops. Segmenting an hour-long assembly into discrete, measurable cycles introduces early feedback, catching defects at the point of origin rather than at final inspection.

Pre-Shift Kitting Protocol

• Standardize Tool and Part Placement: Build a physical planogram—analogous to a retail shelf layout—where every tool, bin, and fixture has an exact, labeled coordinate on the workbench.

• Stage Daily Hardware Requirements: Kit each station before the shift starts with the exact quantity of components required for that day's demand.

• Eliminate In-Process Material Retrieval: Ensure operators do not leave the work cell to restock hardware or retrieve specialized tooling during an active build.

Setting up a kitted, planogrammed station adds approximately 15 minutes of material-handler preparation before the shift. However, eliminating operator motion waste yields an immediate 10–12% gain in active build efficiency across the workstation.

4. Flow vs. Batching: Adjacent Feeder Subassemblies

Pre-building subassemblies in batches of 100 units days or weeks before final assembly introduces high inventory risk and hides systematic tooling errors.

Weekly Batching Method

Max Scrapped / Reworked Units Up to 100 units

Batch Size 100 units

Defect Exposure Window Days to Weeks

Work-in-Process (WIP) Holding High (Floorspace & Capital tied up)

Tooling Drift Detection Delayed until main assembly

Adjacent Feeder Station Method

Max Scrapped / Reworked Units1 Unit

Batch Size 1–5 units (Matched to Takt Time)

Defect Exposure Window Minutes

Work-in-Process (WIP) Holding Near Zero

Tooling Drift DetectionImmediate

Building Subassemblies In-Line

1. Relocate Subassembly Operations: Move subassembly fixtures directly adjacent to the main tabletop assembly station.

2. Synchronize Production Rates: Reconfigure the feeder station to build sub-components on-demand to match the main station’s takt time.

3. Establish Immediate Quality Verification: Inspect subassemblies at the feeder station before transferring them to the main build area.

If a assembly fixture drifts on Unit 3 of a 100-piece batch, Units 4 through 100 will contain the exact same hidden defect.

Moving subassemblies to an adjacent feeder station reduces the defect detection window from days of undetected errors down to 15 minutes and immediate correction.

5. Non-Confrontational Quality Escalation Processes

Technical fixes fail if the human process for reporting defects creates hostility, shame, or interpersonal conflict. A standardized escalation protocol removes emotion from quality reporting.

Respectful Systematic Defect Detection and Notification

Avoid weaponizing or retaliation by keeping it to the facts, with an impartial third party or supervisor when appropriate.

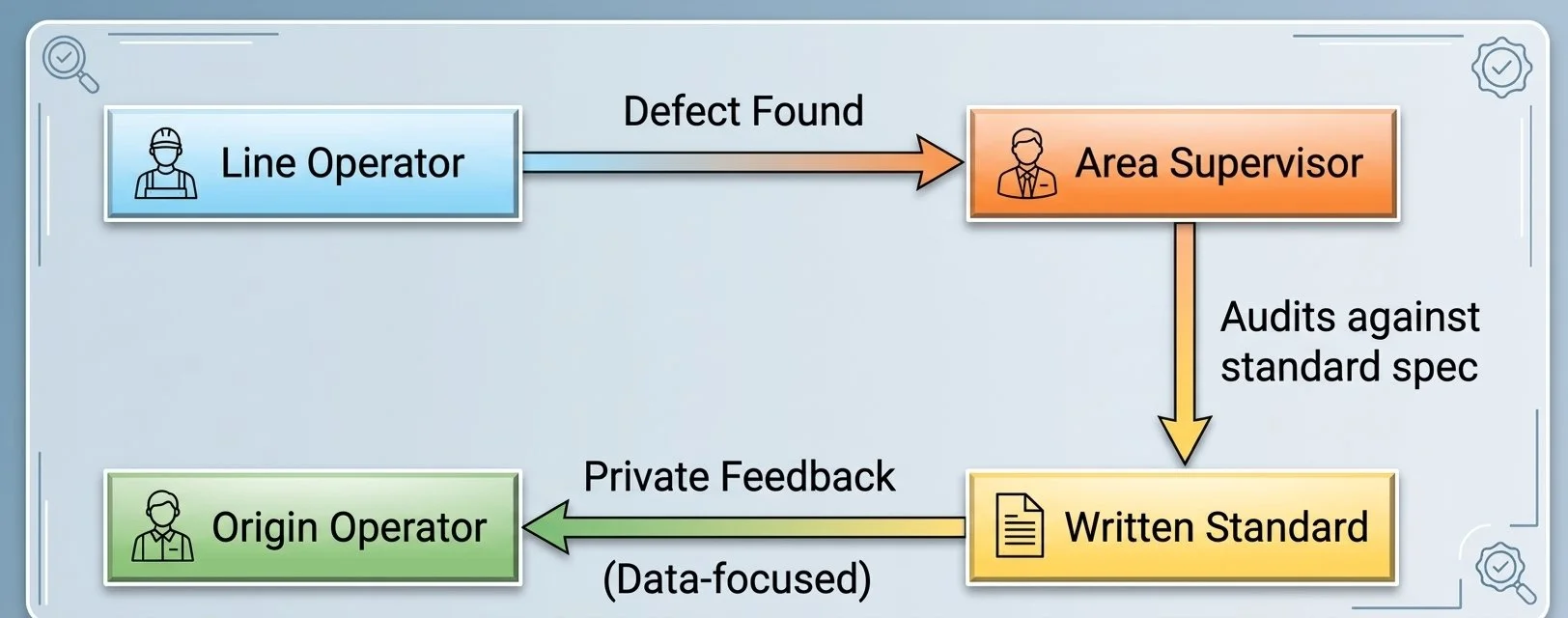

Standard Operating Procedure for Defect Escalation

1. Isolate the Operator-to-Operator Path: Line operators who discover a non-conformance do not directly contact or challenge the operator who built the component.

2. Notify Supervisory Lead: The discovering operator logs the non-conformance and alerts the area supervisor.

3. Audit Against the Engineering Standard: The supervisor verifies the non-conformance against written specifications and physical limits to eliminate subjective bias.

4. Conduct Private Corrective Discussion: If the assembly is defective, the supervisor addresses the operator who produced the work in private.

5. Maintain Objective Data Focus: Discussions focus exclusively on part dimensions, torque limits, and process steps—never personal performance or capability.

This protocol prevents informal "vigilante" feedback, retaliatory reporting, and toxic workplace dynamics, ensuring quality management remains an objective engineering function.

6. Managing Pride, Perfectionism, and Baseline Human Error

Even highly skilled manual assembly technicians operate with a baseline defect rate of 5% to 10%. Treating defects as personal failures damages transparency and leads operators to conceal rework.

Typical Skilled Manual Labor Error Distribution:
[ Baseline Skill & Precision: 90% - 95% Yield ] [ Natural Human Error: 5% - 10% Risk ]

Structural Factors in Workstation Quality Management

• Acknowledge the Human Baseline: Skilled hand assembly carries an inherent 5% to 10% error margin due to fatigue, variance in raw materials, and cognitive load.

• Separate Self-Worth from Work Products: Skilled operators often view mistakes as personal failures. Clear standards shift focus from operator competence to process capability.

• Eliminate Cultural Barriers on Legacy Products: Long-established product lines often foster unconfrontational environments where quality control and production operators avoid reporting issues to keep the peace.

• Shift from Execution Authority to Leadership in Thinking: Operations management must shift from command-and-control tactics ("I pay you, so do what I say") to psychological safety. Fear drives defect concealment; structured systems drive early exposure and resolution.

Missing Links in Manufacturing and Assembly Engineering Drawings

You can make engineering prints more user‑friendly by stripping out “drafting class” assumptions and turning every page into a guided, color‑coded, step‑by‑step map. Think: simple words, clear visuals, and obvious cues that tell a new hire what this is, what matters, and what to do next.

“What am I looking at, and where does it go?”

🧭 Make the print feel like a “tour guide,” not a puzzle

New hires freeze when a print looks like a maze. You fix that by adding:

• Plain‑language header “This page shows how Wire A goes from the power block to the motor.”

• Short “What to Watch For” box “Look for the red stripe. Make sure the wire stays on the right side of the frame.”

• Simple “do this” box “Route the wire through these two clips. Then tie it off at the bracket.”

These boxes act like signposts. They tell the reader what matters before they get lost in symbols.

🎨 Use Drawboard PDF (or similar) to make the print visual and obvious

Most people learn faster with color and shapes. You can use Drawboard PDF to mark up your engineering prints in ways that help new hires understand the flow.

Color‑coding wires on schematics

• Pick one color per wire (red, blue, green, yellow).

• Trace the wire path with a thick line so it stands out.

• Add a small text tag: “Wire A (blue)” so the color has meaning.

Bubble and highlight

• Bubble important areas with a bright outline.

• Highlight the exact connector pins to use.

• Highlight danger zones: “Do NOT route here — pinch point.”

Callouts

• Add arrows with short notes:

  • “Start here.”

  • “Wire passes behind this plate.”

  • “Clip goes on the top hole.”

Step-by-step overlays

• Number the steps right on the print:

  1. Cut wire to length.

  2. Strip ½ inch.

  3. Crimp terminal.

  4. Route through clips.

  5. Plug into connector.

This turns the print into a mini work instruction.

While we’re talking about wires, label both ends of your prepped wires with unique addressable locations like Plug ABC Pin # 4 on one end, and Plug XYZ Pin # 19 on the other end.

No affiliation, but Drawboard is a good (free) tool I’ve had success with:

📑 https://www.drawboard.com/

🛠 Add routing information when the ERP doesn’t have it

Many shops still run on tribal knowledge - aka “on the job training.” You can help by adding routing notes directly on the print:

• Show the path with a dashed line.

• Mark each stop: clip, bracket, tie point, bend.

• Add simple rules:

  • “Keep wire 1 inch away from moving parts.”

  • “Do not cross over the coolant line.”

  • “Follow the frame edge.”

If routing changes by model, add a small table:

Model A100 A200 A700

Wire Path Front Rear Through

Notes ——Use Edge Guard————

This saves hours of confusion.

🔍 Reduce cognitive load by changing how you write

Most engineering prints are written like legal documents. You can make them friendly by using:

• Short sentences

• Everyday words

• Direct commands

• No jargon unless you explain it

Instead of: “Ensure conductor is properly terminated in accordance with IPC‑620 guidelines.”

Which IPC-620 guideline exactly? That book is 500 pages thick.

You’re offloading your responsibility onto the busiest people in the building.

Use: “Crimp the end of the wire with Connector Molex TE ABC. Use Crimper ZYX (instructions HERE) to make sure it looks like (THIS) and meets (THESE CRITERIA) and make sure the metal is tight and does not pull out.”

📐 Add big picture notes so new hires know what they’re looking at

A new hire often doesn’t know what the drawing is. Add a simple box:

What this drawing shows: “This drawing shows the power wires for the left‑side motor. You will connect two wires, route them through three clips, and plug them into the motor.”

This lowers anxiety and speeds up learning.

🧩 Use shapes and icons to guide the eye

Even simple shapes help:

• Stars for “important”

• Warning triangles for “be careful”

• Footprints for “follow this path”

• Check marks for “done right” examples

People remember icons faster than text.

🧪 Add “good vs. bad” examples

Show both:

• Good routing: wire tight, clean path

• Bad routing: wire touching hot surface, sharp bend, loose slack

A picture beats a paragraph.

🧰 Add a “tool list” and “material list” right on the print

New hires waste time hunting for tools.

Tools you need:

• Wire cutters

• Crimp tool

• Tie wraps

• Clip pack

Parts you need:

• Wire A (blue)

• Clip x2

• Motor connector

This makes the job feel doable.

🧵 Add a “before you start” checklist

Simple, friendly, and powerful:

• Check you have the right wire color

• Check the connector matches the print

• Check the clips are not broken

• Check the path is clear

This prevents mistakes before they happen.

🏁 Add a “done right” checklist at the end

• Wire is tight but not stretched

• Clips are closed

• No sharp bends

• No rubbing on metal

• Connector clicks in place

This builds confidence for new hires.

🧠 Final thought

Your goal is to make the print feel like a coach, not a test. If a 12‑year‑old can follow it, a new hire can too — and your shop gets faster, safer, and more consistent.

Paper print reading should be possible while walking, holding your print at arm’s length, in your shop’s actual lighting conditions. You can make almost anything look good on a backlit screen at 200% zoom. But that’s a waste of time if it hides the information from the folks who picked it up off the laser printer.

No-Go Gauges for purchased part validation

When dealing with purchased parts from outside suppliers where you do not control the upstream process, Go/No-Go gauges are highly effective defensive containment strategy—provided they are used to enable Poka-Yoke (mistake-proofing) at the line level.

Here is how to think about Go/No-Go gauges, why they don't violate lean principles if deployed correctly, and how to use them effectively when supplier control is out of your hands.

1. Reframing the "Inspecting Quality In" Dilemma

The phrase "inspecting quality into a product" refers to taking a batch of finished assemblies, measuring them at the end, sorting the bad ones into a scrap bin, and hoping the good ones ship. That creates waste (Muda) because labor and material were already expended on bad units.

Using a Go/No-Go gauge at Incoming Receiving or at an In-Line Station works differently:

• It is Containment, Not Process Control: You aren't pretending the gauge fixes the supplier's process. You are building a firewall so vendor defects don't consume high-cost internal labor down the line.

• It Prevents Defect Propagation (Poka-Yoke): If a gauge is integrated into the assembly nest (e.g., a part physically cannot fit into the fixture unless its key dimensions are within tolerance), the gauge acts as a mistake-proofing device. It stops an operator from attempting to assemble a bad part.

2. When Go/No-Go Gauges Are Highly Effective

1. Purchased Parts with Unknown/Variable Capability: When you don't own the CNC machines or injection molds, a gauge gives immediate binary feedback (Pass/Fail) without needing skilled technicians to read calipers or micrometers on every single incoming batch.

2. High-Speed Line Integration: Reading a dial indicator takes 10–15 seconds; dropping a shaft into a ring gauge takes 1 second.

3. Preventing Downstream Tool/Fixture Damage: Catching an oversized component before forcing it into a delicate assembly fixture saves downtime and tool wear.

3. The Major Risks & Pitfalls of Go/No-Go Gauges

While effective for containment, Go/No-Go gauges come with distinct technical limitations you must manage:

• Zero Trend Information (No SPC): A No-Go gauge tells you a part is out of tolerance, but it doesn't tell you how far out. It doesn't tell you if the supplier’s tool is wearing out over time or if the process is drifting toward the high spec limit. You get an attribute (Good/Bad), not variable data.

• Gauge Wear and Calibration: Go gauges wear down over time because they constantly make physical contact with passing parts. An uncalibrated Go gauge will eventually start letting bad parts pass.

• Operator Force Variance: If an operator forces a No-Go pin into a hole, they can force a bad part to "pass" or ruin the gauge.

4. Strategic Framework: How to Deploy Gauges Correctly

To turn Go/No-Go gauges into an effective quality shield without falling into the "inspecting quality in" trap, follow this 4-step framework:

Step 1: Push Inspection Upstream via Fixturing (In-Line Poka-Yoke)

Don't make operators pick up a hand gauge, check the part, lay the gauge down, and then install the part. Make the assembly fixture itself the gauge.

• Design the loading nest so an out-of-spec component physically will not seat.

• If the part doesn't drop in effortlessly, it's rejected instantly before any assembly labor is spent.

Step 2: Establish "Source Inspection" Clauses with Vendors

Use your Go/No-Go gauges to hold suppliers accountable:

• Require suppliers to purchase or manufacture the exact same Go/No-Go gauge set you use.

• Put in the purchase agreement that parts must pass that specific gauge at their facility prior to shipment.

• Shift the inspection labor cost back to the vendor.

Step 3: Use Guardbanding for Critical Purchased Tolerances

Because Go/No-Go gauges don't give exact measurements, vendor parts right at the spec boundary can cause friction during assembly.

• Make your receiving Go/No-Go gauge slightly tighter (guardbanded) than the engineering drawing limit.

• This guarantees that any part passing receiving will assemble smoothly without tight-fit rejections on the line.

Step 4: Pair Attribute Gauges with Periodic Variable Audits

While line operators use Go/No-Go attribute gauges for speed, Quality Assurance should sample 5 to 10 parts per lot with optical comparators, CMM, or micrometers.

• Use exact data to track supplier Statistical Process Control (SPC) trends over time.

• If CMM data shows the vendor drifting toward the upper spec limit, alert the vendor before your line operators start catching hard rejections on the No-Go gauge.

Summary

Using Go/No-Go gauges to weed out bad purchased parts isn't a violation of Lean philosophy—it's necessary containment.

The ideal progression is:

1. Short Term: Use Go/No-Go gauges at receiving or line entry to stop the bleeding.

2. Medium Term: Integrate the gauge directly into the assembly station's fixture (Poka-Yoke).

3. Long Term: Send the gauge specification to the vendor so they reject bad parts at their factory floor, not yours.
